WE119 1 x 19 Econ Wire Rope 316 Grade Stainless Steel (305 Metre Roll) - ALL SIZES
- Product Code:
- WE119-305M
- Brand:
- Econ
-
Free delivery*
-
Same Day Despatch#

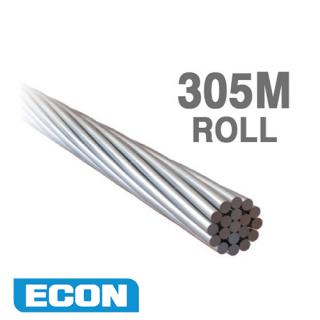

WE119 1 x 19 Econ Wire Rope 316 Grade Stainless Steel (305 Metre Roll)
Characteristics:
• Rigid, non-flexible, minimal stretch, suitable for straight runs
• Strong with higher relative breaking strain to other constructions
• Ultra smooth and bright finish
• Higher resistance to staining due to smoother surface finish
• Ideal for use with factory swaged stainless steel fittings
• Not recommended for hand swaging
Applications:
• Wire Balustrades
• Tension Membrane, Vinyl Shade Structures
• Architectural Rigging
• Green-walls, Cable Trellis
• Shop Fittings
• Marine Applications
• General Purpose Applications
Mill Certificates
All Econ wire rope is manufactured in accordance with ISO 9001 Quality Management System. All rolls can be supplied with mill certificates detailing product specification, chemical composition and tested break load.
Tags:
Prorig | |
---|---|
Size | 1 x 19 |
Grade | 316 |

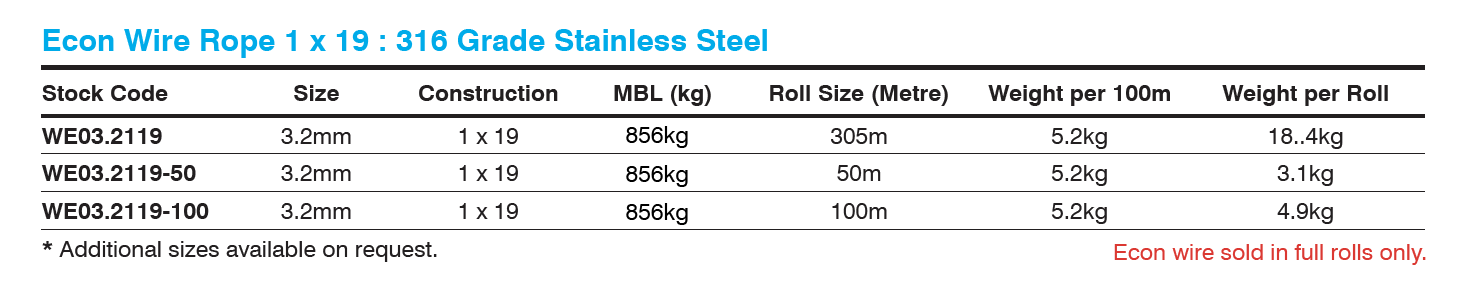

STOCK CODE | SIZE | CONSTRUCTION | MBL (kg) | ROLL SIZE (Metre) | WEIGHT PER 100m | WEIGHT PER ROLL |
WE03.2119 | 3.2mm | 1 x 19 | 856 | 305m | 5.2kg | 18.4kg |
WE03.2119-50 | 3.2mm | 1 x 19 | 856 | 50m | 5.2kg | 3.1kg |
WE03.2119-100 | 3.2mm | 1 x 19 | 856 | 100m | 5.2kg | 4.9kg |
