S370 ProRig Cast Bow Anchor Shackle AISI 316 - ALL SIZES
- Product Code:
- S370
- Brand:
- ProRig
-
Free delivery*
-
Same Day Despatch#

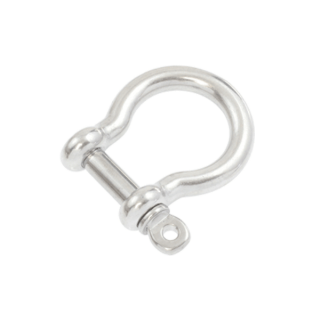

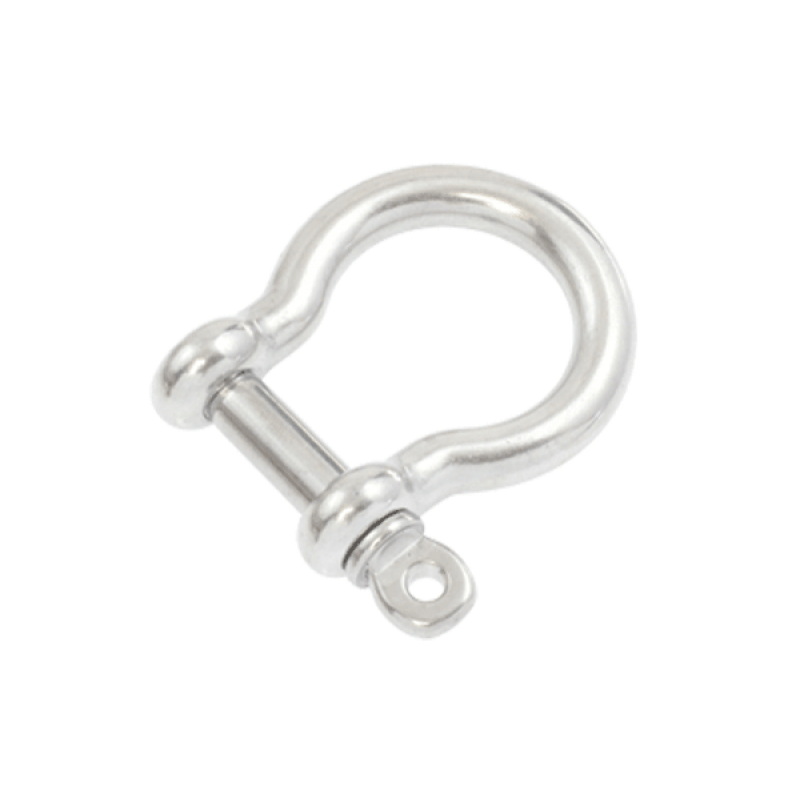

ProRig Cast Bow Anchor Shackle 316 Grade Stainless Steel
ProRig Cast Bow Anchor Shackle made from high quality 316 Marine Grade Stainless Steel. ProRig Bow Anchor Shackles feature a smooth and shiny electropolished finish and are produced by a trusted manufacturer with more than 30 years experience in the stainless steel manufacturing industry. When purchasing ProRig Bow Anchor Shackles you can be assured you are receiving a consistently high quality product with sturdier constructions, accurate material composition, precisely manufactured threads, and overall high quality finish. ProRig Cast Bow Anchor Shackles feature a cast body with a forged pin
ProRig Cast Bow Anchor Shackles are commonly used in shade structures, architectural rigging, wire rope, marine, and general purpose applications.
Tags:

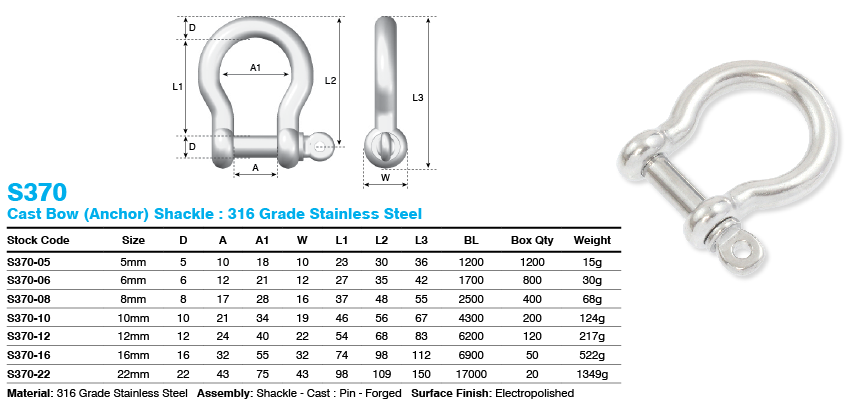

STOCK CODE | SIZE | D | A | A1 | W | L1 | L2 | L3 | BL | BOX QTY | WEIGHT |
S370-05 | 5mm | 5 | 10 | 18 | 10 | 23 | 30 | 36 | 1200 | 1200 | 15g |
S370-06 | 6mm | 6 | 12 | 21 | 12 | 27 | 35 | 42 | 1700 | 800 | 30g |
S370-08 | 8mm | 8 | 17 | 28 | 16 | 37 | 48 | 55 | 2500 | 400 | 68g |
S370-10 | 10mm | 10 | 21 | 34 | 19 | 46 | 56 | 67 | 4300 | 200 | 124g |
S370-12 | 12mm | 12 | 24 | 40 | 22 | 54 | 68 | 83 | 6200 | 120 | 217g |
S370-16 | 16mm | 16 | 32 | 55 | 32 | 74 | 98 | 112 | 6900 | 50 | 522g |
S370-22 | 22mm | 22 | 43 | 75 | 43 | 98 | 109 | 150 | 17000 | 20 | 1349g |
